Injection Molding TPEs

Injection Molding TPEs

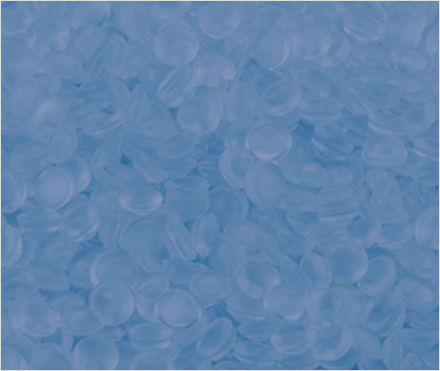

Injection-grade TPE

Products Characterization:

High fluidity. Soft-touch. Overmolding compatibility with TPE/PP/PE cable.

Application

TPE wire sheaths. Overmolding PP/PE. Stationery. Tool grip. Sporting equipment

TPE injection guidance

1. Previous drying of the product 2 hours at 80℃

2. Medium injection pressure & speed

3. Typical barrel temperature suggested


C1C1C3NOZZLEMOLD

170-190 ℃

180-200 ℃

190-210 ℃190-210 ℃30-60 ℃


Technical Data of Injection Molding TPEs

Technical Data SheetModel

Material Properties
Test Standard
Test Condition
Unit2575F-RSS-1006S
General Characteristics
Material Category---
Appearance(Light/Semi-matte/Frosted)---
Extrusion/Injection
---
Physical CharacteristicsHardnessISO 4815SShore A75
ProportionISO 1183-g/cm³0.963
Melt IndexISO 1133-1:2011190℃/2.16kgg/10min64.2
Brittle TemperatureISO 812-
Mechanical Properties
ElongationISO37:2017200mm/min%450
Tensile StrengthISO37:2017200mm/minMpa6.65
Tearing StrengthISO34-1:2015500mm/minKN/m
Hot Air AgingElongation Retention RateISO37:2017-%
Tensile Strength Retention RateISO37:2017-%
Electrical Performance
Volume ResistivityASTM D257-Ohm-cm
PermittivityASTM D150--
Combustion PerformanceVertical Burning TestUL 943.0/6.0mm-
Oxygen IndexASTM D2863-%
Feature


Key Benefits of Injection Molding TPEs

Key Benefits of Injection Molding TPEs

· Competitive price      · Respond immediately      · Strong R&D capability      · Excellent after-sales service
