TPU from ATPolymer

  • As one of the professional China TPU material manufacturers and thermoplastic polyurethane suppliers, ATP's modified TPU for sale (TPU compounds/ thermoplastic polyurethane) and TPU cable jacket material technical ability are in a leading position in large-scale industrial applications.

  • Our thermoplastic polyurethane for sale obtained UL94 V0 yellow card certification (1.5mm—6.0mm). It is also one of the few polyether-grade halogen-free flame-retardant TPU materials on the TPU manufacturer market that supports cables to pass the VW-1 or IEC60332 flame-retardant test requirements.

  • ATPolymer TPU supplier obtained the world's first certification for the charging pile cable (EV CALBE) jacket material jointly issued by CQC (China Quality Certification Centre) and Germany Dekra.

  • The physically foamed TPU of ATP TPU supplier is the only product on the market that does not require the customer to perform secondary physical mixing and stirring at the processing end and can be directly extruded and foamed by cutting the material directly on the extruder, which greatly increases the wire diameter of the foamed cable Stability and foaming uniformity have plagued the industry for many years in this field.

  • TPU material remains soft at low temperatures, while PVC may harden.

  • TPU cable jacket is odorless while PVC has more of a plastic odor.

  • Thermoplastic polymeric material is more environmentally friendly and can be recycled, but PVC is not.


Thermoplastic Polyurethane for Sale by Processing

Thermoplastics may be reshaped and are typically used to produce parts by various polymer processing techniques such as injection molding and extrusion. ATPolymer, as one of the world-leading tpu compound and TPU material manufacturers and suppliers, providers you with Eextruding TPU cable jacket and Injection Molding TPU.
Extruding TPU
Extruding TPU
1185F-EMS-1627T Extruding TPU Model 35.325 Tensile Strength, 1.116 Proportion.
Injection Molding TPU
Injection Molding TPU
1182B-RSS-1531S and 1182B-RSS-1531S Injection Molding TPU Model-18.5 and 36.951Tensile Strength.

Characteristics of TPU Materials

Elastomers are loosely cross-inked polymers. They have the characteristics of rubber in terms of flexibility and elasticity.
Flame Retardant TPU
Flame Retardant TPU
Achieved UL Yellow Card verified V0 (1.5mm-6.0mm), fully support cables products to pass the VW-1 or IEC60332 flame retardant tests.
UV-resisitance TPU
UV-resisitance TPU
Meet CPR regulations.

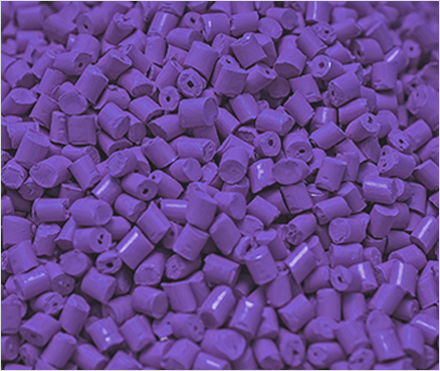

Anti-static TPU
Anti-static TPU
TPU materials are antistatic modified to show its permanent antistatic resistant character (resistance 106-109), and excellent shading properties as well.

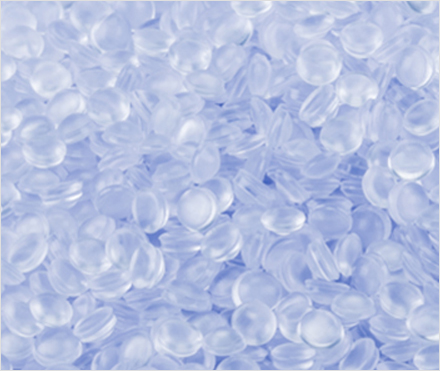

High Temperature-resistance TPU
High Temperature-resistance TPU
Fully support the cable pass UL 758/1581 80℃/105℃heat resistance test (113℃/136℃, 168Hrs).

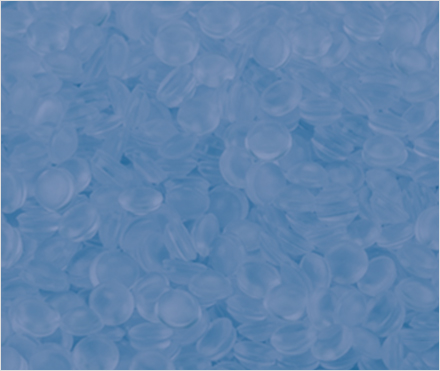

Anti-mildew TPU
Anti-mildew TPU
Authoritative certified mold-resistant materials: through the military standard mold resistance test (GJB150.10).

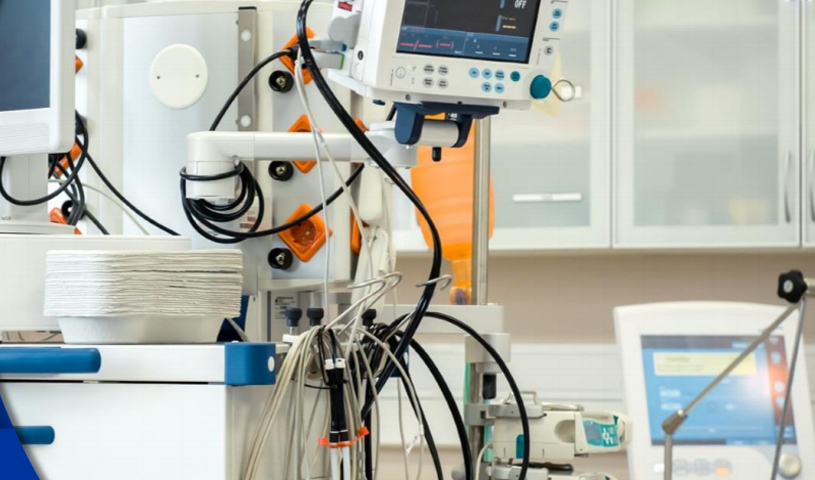

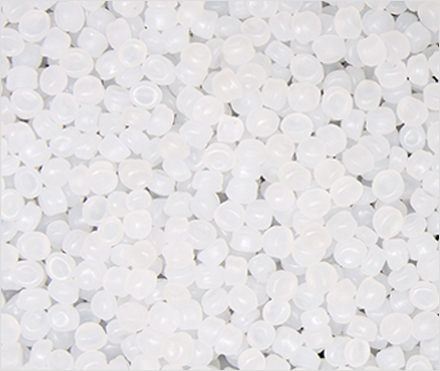

Medical Equipment & Microbial-resistance Cable Jacket TPU
Medical Equipment & Microbial-resistance Cable Jacket TPU
Passed ISO10993 "bio-compatibility" test (authoritative verification report attached).

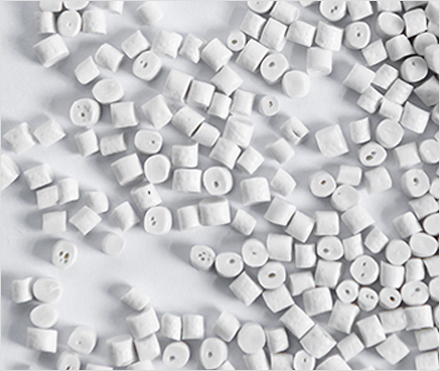

Foaming Ocean TPU
Foaming Ocean TPU
Foaming modification is conducted to proportion of 0.70-0.80. to meet the application requirement of marine floating cables and consumptions.
High Elasticity/Flexible TPU
High Elasticity/Flexible TPU
High-end market TPU wire and tube products with excellent comprehensive performances.

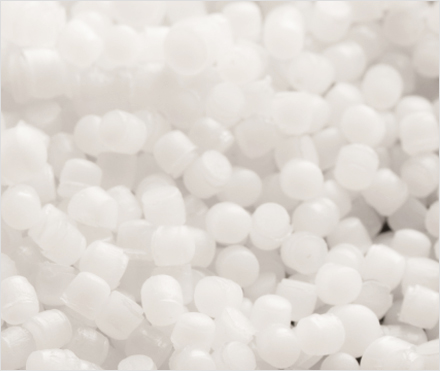

High Wear-resistance TPU
High Wear-resistance TPU
Environmental Friendly, Outstanding Flame Retardant, Excellent Physical Properties,Perfect-Surface Effect, Good Printable, Easy Processing and Stable Quality.

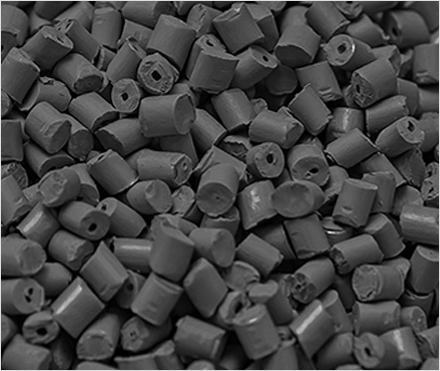

Fog TPU
Fog TPU
High-end market TPU wire & cable products with fine, homogeneous matte surface effect.

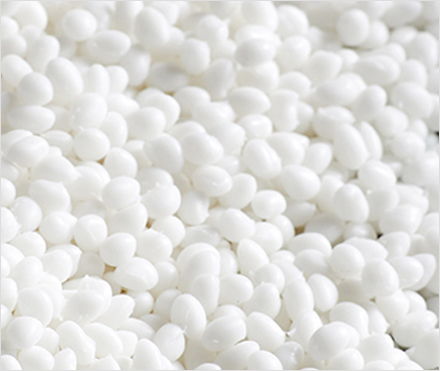

Matte Surface TPU
Matte Surface TPU
Fine, homogeneous matte surface effect; slim and soft-touch rubber feel.

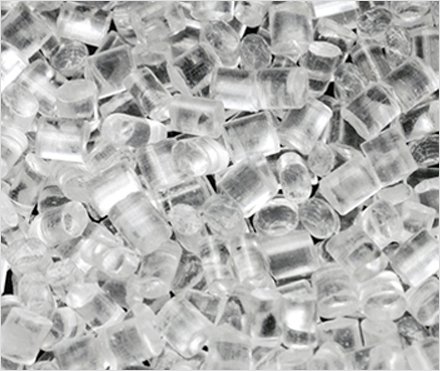

Rodent & Termite Resistant TPU
Rodent & Termite Resistant TPU
Anti-UV, anti-static and other characteristics can be added on the basis of not changing the above basic properties.

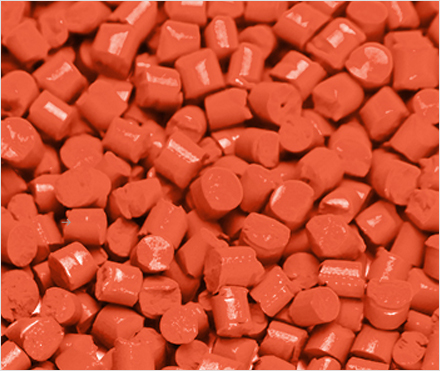

Hydrolysis Resistance TPU
Hydrolysis Resistance TPU
Polyether elastomer base; Flame Retardant Level:1.5mm V0.

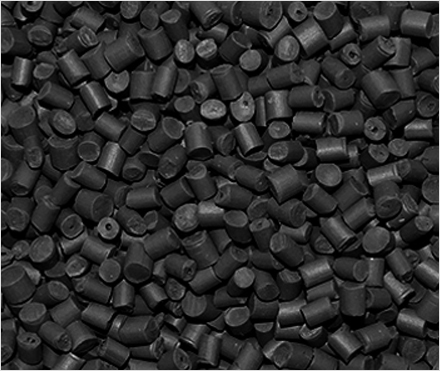

Easy Peeling/Strip Off TPU
Easy Peeling/Strip Off TPU
Easy peeling; Easy tearing, High security and reliability and High-temperature resistance.

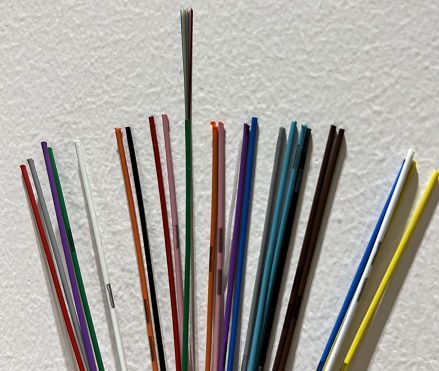

TPU Compounds for Loose Tube
TPU Compounds for Loose Tube
Easy-peel; easy-tear; hydrolysis-resistance; anti-UV; ointment soaking-resistance; excellent processing performance; easy coloring.
More TPU Compounds
ATP Thermoplastic Polyurethane Material Properties

ATP Thermoplastic Polyurethane Material Properties

Improved Flame  Retardance

Improved Flame Retardance

Achieved UL Yellow Card verified V0 (1.5mm-6.0mm), fully support products with TPU cable jacket material to pass the VW-1 or IEC60332 flame retardance tests.

Improved Antistatic  Ability

Improved Antistatic Ability

Aiming at some special applications, TPU materials are antistatic modified to show their permanent antistatic resistant character (surface resistance 106-109), and excellent shading properties as well.

Improved High Temperature Resistance

Improved High Temperature Resistance

Better wear resistance and scratch resistance thermoplastic polyurethane for sale than the others in a same testing condition.

Chemical Foaming  Modification

Chemical Foaming Modification

Chemical foaming modification is conducted to proportion of 0.70-0.80. to meet the application requirement of marine floating cables and consumptions.

Improved Surface Resistant Performance
Improved Surface Resistant Performance

Devers high polymer materials are applied to product formula to make the modified TPU cable jacket material display high-quality texture such as matte surface, grinding surface or display soft, comfortable, and dry rubber or silicone handle in cables and optical cables extrusion processing.

High Hardness LSFH
Improved Environmental Resistant Performance
Improved Environmental Resistant Performance

Extrusion Grade TPU: The fluidity and crystallization rate of TPU materials are targeted to be improved to fully meet the requirements of wires, cables, and optical TPU cable jacket filling, semi-filling, empty tube extruding, and high-speed ultra-thin wall (≤0.1mm,80—200m/min) extruding. High extruding yield rate and deterioration performance like salivation, skin breakage, granules, rough linen, die marks and irregular shape seldom occurred. And this keeps good stability of line diameter and roundness together with wires, cables, and optical cables high-speed extrusion.

 Injection Grade TPU: Good moldability, easy demolding, raising the injection yield greatly.

High Hardness LSFH
Improved Processing Performance
Improved Processing Performance

TPU is improved in the performance of UV resistance, mold resistance (GJB), hydrolysis resistance, chemical resistance, etc., to show a higher security level and satisfy the special requirements of flame retardant TPU cable and optical cable jackets:


· Mold-resistance: products of ATP TPU supplier pass the Chinese National Military Standard (GJB 150.01A) 0-1 Grade mold resistance test (with test report);


· Hydrolysis-resistance: support cables to pass 1000h hydrolysis resistance test (85 ° C / 85% RH, 1000h); pass the 168Hrs thermostatic water bath test (80℃/168Hrs) with the strength change rate ≤ 30% and elongation change rate ≤ 35%;


· Oil-resistance:  Support cables to pass 70℃/24h oil resistance test with the  change rate of strength and elongation ≤30%;


· Acid and Alkali Resistance:  Support TPU polymer cables to pass the acid and alkali resistance test at 23℃/168h with the strength change rate≤ 30%, and the elongation rate is≥100%.
