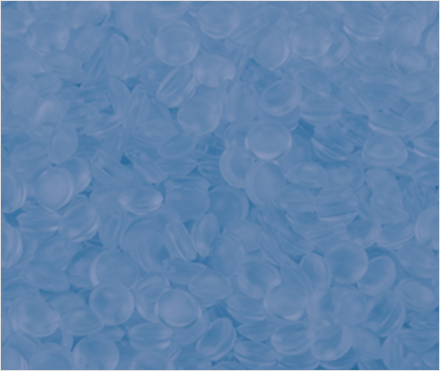

High Wear-resistance LSZH

High Wear-resistance LSZH

The insulating layer and sheath of the halogen-free low-smoke flame-retardant cable have better flame-retardant properties, and the smoke generation of the cable is also small and the toxicity is low. The price of halogen-free low-smoke flame-retardant cables is higher.

The flame retardant cable is a cable in which the sample is burned under the specified test conditions. After the test-fire source is removed, the spread of the flame is only within a limited range, and the residual flame or residual burning can be extinguished within a limited time.

Its fundamental characteristic is: in the event of a fire, it may burn out and become inoperable, but it can prevent the spread of fire. In layman's terms, in the event of a fire in the cable, it can control the combustion to a local area without spreading, and protect other various equipment to avoid greater losses.

Technical Data of High Wear-resistance LSZH

Technical Data SheetModel
ItemsMaterial PropertiesTest StandardTest ConditionUnit5632G-ERD-0115S
Physical CharacteristicsHardnessISO 4815SShore A53
ProportionISO 1183-g/cm³1.52
Brittle TemperatureISO 812--40
Mechanical PropertiesTensile StrengthICE 60811-501200mm/min%170
ElongationICE 60811-501200mm/minMpa15
Hot Air AgingTensile Strength Retention RateISO37:2017-%-11
Elongation Retention RateISO37:2017-%-7
Electrical PerformanceVolume ResistivityASTM D257-Ohm-cm9.388*10^11Ω·m
Dielectric StrengthASTM D150--33.81
Combustion PerformanceVertical Burning TestUL 943.0/6.0mm-pass
Oxygen IndexASTM D2863-%36
Feature





Key Benefits of High Wear-resistance LSZH

Key Benefits of High Wear-resistance LSZH

· Competitive price      · Respond immediately      · Strong R&D capability      · Excellent after-sales service
