Product Description:

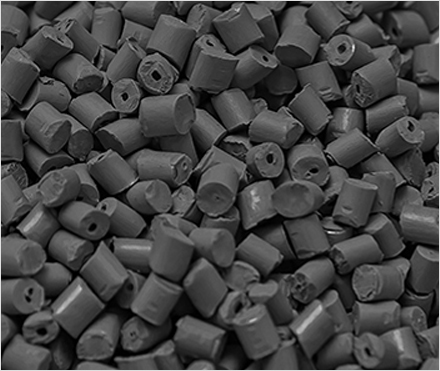

HTPO series of lightweight polymer products are foamed with high-performance controllable technology. It is a new type of ultra-lightweight inorganic non-metallic material, and the structure is composed of micron-scale airtight hollow spheres.
Purpose of foaming:
The purpose of general material foaming is to lighten the weight of the product and enhance the thermal insulation and turbulence of the product. The purpose of foaming the cable material is to reduce the dielectric constant of the material. General material foaming methods are divided into chemical foaming methods and physical foaming methods. (nitrogen foaming)
Application: Foaming Polymer For Ocean & Submarine Cables.
| Technical Data Sheet | Model | ||||
| Material Properties | Test Standard | Test Condition | Unit | 2580F-ESF-1264S | |
| General Characteristics | Material Category | - | - | - | |
| Appearance(Light/Semi-matte/Frosted) | - | - | - | ||
| Extrusion/Injection | - | - | - | ||
| Physical Characteristics | Hardness | ISO 48 | 15S | Shore A | 79 |
| Proportion | ISO 1183 | - | g/cm³ | 0.694 | |
| Melt Index | ISO 1133-1:2011 | 190℃/2.16kg | g/10min | 0.6 | |
| Brittle Temperature | ISO 812 | - | ℃ | ||
| Mechanical Properties | Elongation | ISO37:2017 | 200mm/min | % | 129 |
| Tensile Strength | ISO37:2017 | 200mm/min | Mpa | 3.76 | |
| Tearing Strength | ISO34-1:2015 | 500mm/min | KN/m | ||
| Hot Air Aging | Elongation Retention Rate | ISO37:2017 | - | % | |
| Tensile Strength Retention Rate | ISO37:2017 | - | % | ||
| Electrical Performance | Volume Resistivity | ASTM D257 | - | Ohm-cm | |
| Permittivity | ASTM D150 | - | - | ||
| Combustion Performance | Vertical Burning Test | UL 94 | 3.0/6.0mm | - | |
| Oxygen Index | ASTM D2863 | - | % | ||
| Feature | |||||
