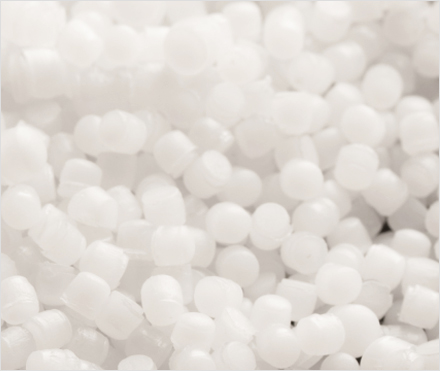

High Wear-resistance TPU

High Wear-resistance TPU

Fully support the wire pass all kinds of rocking, resilient recovery, and other tests. passed over 50000 wear-resisting tests, effectively preventing EV cable from wearing and cracking caused by repeated dragging under cement and sand conditions for a long time.

General Characteristics:

1. Environmental Friendly

HFFR materials completely comply with RoHS, REACH, Halogen-free, Phthalate (16P) Dimethyl Fumarate, PFO&PFOS, TBBPA, PAHs, EN71, etc. regulations, and rules.

2. Outstanding Flame Retardant

UL94 5VA-V0 (1.5mm) level, can firmly support wire and tube pass CSA FT-4, UL VW-1 and etc.

3. Excellent Physical Properties

UL 80℃-125℃ heat-resistance can firmly support wire & cable to pass UL 1581/758/62 and non- migration test, the properties are beyond the reference values of flexible wire standards.

4. Perfect-Surface Effect

Fine and smooth appearance and soft-touch feel, resolve the common defects such as heterogeneous, pits, whiten, sticky and etc.

5. Good Printable

High surface tension and polarity, can apply the main halogen-free ink to obtain good adhesion and scratch resistance, stand by UL2556.

6. Easy Processing

High efficiency and processing performance, can achieve 60~100m/min rate using the same size extruder of PVC and decrease the probabilities of the cast, pellet, bulge, pits, etc. common defects significantly.

7. Stable Quality

Long-term experience of R&D processing and application based on ISO9000 and 14000 quality systems.


Technical Data of High Wear-resistance TPU

Technical Data SheetModel

Material Properties
Test Standard
Test Condition
Unit
1190F-EHS-1076S
General Characteristics
Material Category---
Appearance(Light/Semi-matte/Frosted)---
Extrusion/Injection
---
Physical CharacteristicsHardnessISO 4815SShore A90
ProportionISO 1183-g/cm³1.128
Melt IndexISO 1133-1:2011190℃/2.16kgg/10min10
Brittle TemperatureISO 812-
Mechanical Properties
ElongationISO37:2017200mm/min%425
Tensile StrengthISO37:2017200mm/minMpa48.53
Tearing StrengthISO34-1:2015500mm/minKN/m
Hot Air AgingElongation Retention RateISO37:2017-%
Tensile Strength Retention RateISO37:2017-%
Electrical Performance
Volume ResistivityASTM D257-Ohm-cm
PermittivityASTM D150--
Combustion PerformanceVertical Burning TestUL 943.0/6.0mm-
Oxygen IndexASTM D2863-%
Feature


Key Benefits of High Wear-resistance TPU

Key Benefits of High Wear-resistance TPU

· Competitive price      · Respond immediately      · Strong R&D capability      · Excellent after-sales service
