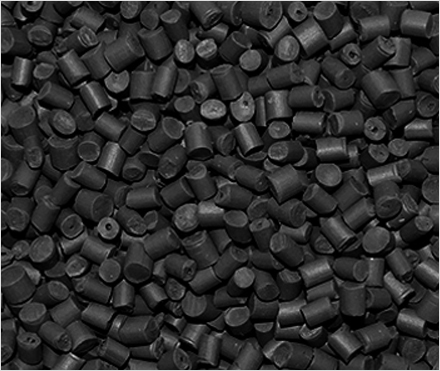

High Temperature-resistance LSZH

High Temperature-resistance LSZH

Support the In-car Sensor Cable Harness to pass ISO6722 125℃ High Temperature-resistance test, high flame retardant test, and so on.

1. High flame-retardant performance:

Fully support the optical cable through the EN 50575:2014+A1:2016 B2ca, Cca, Dca level test (different product models meet different CPR level requirements);

Very effective total heat release and heat release rate peak control scheme. The carbonization efficiency is higher. When burning, the table surface can be quickly charred to form an effective fiber protective layer; the generation of smoke during combustion and the release of halogen acid gas are also in full compliance with the CPR regulations;

2. Safety and reliability:

Fully support the cable through environmental resistance test as follows;

Passed high temperature cracking test (YD/T1113 100 ° C, 96H, no crackle on the surface);

Pass the high-temperature aging test (100°C, 168H, tensile strength and elongation change rate ≤ 30%);

Pass the -25°C low-temperature shock test.

3. Good wear resistance:

Better wear and scratch resistance under same test conditions;

4. Easier processing:

Fully meet the high-speed extrusion of optical cables; the wire diameter is round and stable, less flow (less die deposit), good color stability, higher processing yield rate.

5. Stable performance and quality:

The product batch stability and uniformity are guaranteed"

Technical Data of High Temperature-resistance LSZH

Technical Data SheetModel

Material Properties
Test Standard
Test ConditionUnit
6364D-EES-0003S
General Characteristics
Material Category---
Appearance(Light/Semi-matte/Frosted)---
Extrusion/Injection
---
Physical Characteristics
HardnessISO 4815SShore A38
ProportionISO 1183-g/cm³1.326
Melt IndexISO 1133-1:2011190℃/2.16kgg/10min-
Brittle TemperatureISO 812-
Mechanical Properties
ElongationICE 60811-501200mm/min%385
Tensile StrengthICE 60811-501200mm/minMpa11.48
Tearing StrengthISO34-1:2015500mm/minKN/m
Hot Air AgingElongation Retention RateISO37:2017-%
Tensile Strength Retention RateISO37:2017-%
Electrical Performance
Volume ResistivityASTM D257-Ohm-cm
PermittivityASTM D150--
Combustion PerformanceVertical Burning TestUL 943.0/6.0mm-
Oxygen IndexASTM D2863-%
Feature


Key Benefits of High Temperature-resistance LSZH

Key Benefits of High Temperature-resistance LSZH

· Competitive price      · Respond immediately      · Strong R&D capability      · Excellent after-sales service
