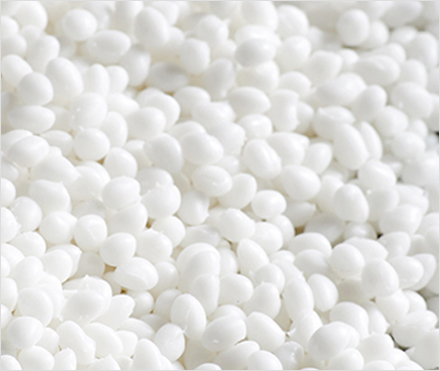

Matte Surface TPU

Matte Surface TPU

UEN-M Series Matte TPU

Applied Fields: High-end market TPU wire & cable products with fine, homogeneous matte surface effect.

Characteristics: Fine, homogeneous matte surface effect; slim and soft-touch rubber feel.

Applicable fields:

1. All kinds of cables and optical cables with matte and matte characteristics are required for the outer quilt;

2. The outer quilt of various cables that can pass the CSA FT-2 horizontal combustion test.

Product features:

1. Even, delicate, soft, and smooth matte and matte appearance;

2. Excellent mechanical properties, elasticity and wear resistance;

3. Processing characteristics: excellent processing efficiency and processing performance, the production efficiency of 60-100 meters per minute can be achieved by using the same PVC screw machine, and there is very little deterioration such as drooling, particles, bulging, and pitting during processing.

Product commonality:

1. Environmental performance: fully meet the requirements of internationally accepted environmental protection directives such as RoHS (REV.2.0), REACH regulations, SVHC substances, and GP;

2. Environmental resistance characteristics: According to the application requirements of customers, anti-UV, anti-static, and other characteristics can be added without changing their basic performance.

Technical Data of Matte Surface TPU

Technical Data SheetModel

Material Properties
Test Standard
Test Condition
Unit
1185F-EMS-1546T
General Characteristics
Material Category
---
Appearance(Light/Semi-matte/Frosted)---
Extrusion/Injection
---
Physical CharacteristicsHardnessISO 4815SShore A83
ProportionISO 1183-g/cm³1.079
Melt IndexISO 1133-1:2011190℃/2.16kgg/10min5.1
Brittle TemperatureISO 812-
Mechanical Properties
ElongationISO37:2017200mm/min%489
Tensile StrengthISO37:2017200mm/minMpa26.1
Tearing StrengthISO34-1:2015500mm/minKN/m
Hot Air AgingElongation Retention RateISO37:2017-%
Tensile Strength Retention RateISO37:2017-%
Electrical Performance
Volume ResistivityASTM D257-Ohm-cm
PermittivityASTM D150--
Combustion PerformanceVertical Burning TestUL 943.0/6.0mm-
Oxygen IndexASTM D2863-%
Feature


Key Benefits of Matte Surface TPU

Key Benefits of Matte Surface TPU

· Competitive price      · Respond immediately      · Strong R&D capability      · Excellent after-sales service
