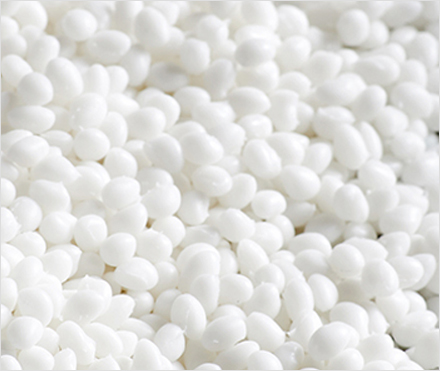

SER—V Series UV Resistant HFFR TPU（105/℃ 80℃Heat-Resistance）
Applied Fields:

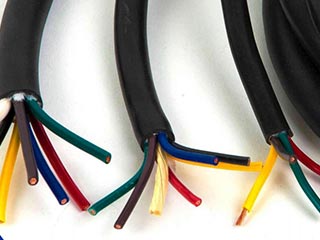

HFFR wire & cable with stable, long-term UV resistance property of this type polyether-based TPU can pass UL105 /90 ℃ ℃ heat-resistance level.
Characteristics:
1. UV resistance property: long-term, stable UV resistance property, E △ ＜1（0.35W/m2, 340nm, 4H/60 &4H/50 ℃ ℃, 48h/168h）after 48h/168h radiation;
2. Heat-resistance Level: 105/80℃;
3. Flame Retardant Level: 1.5mm V0, support VW-1;
4. Physical characteristics: can support wire & cable to pass UL 1581/758/62 test and non-migration test;
5. Surface effect: fine and smooth surface and soft-touch feel without heterogeneous, pits, whiten, sticky and etc. defects can return gloss, matte and semi-matte surface effect through control of die temperature.
| Technical Data Sheet | Model | ||||
| Material Properties | Test Standard | Test Condition | Unit | 1185D-EMS-1186S | |
| General Characteristics | Material Category | - | - | - | |
| Appearance (Light/Semi-matte/Frosted) | - | - | - | ||
| Extrusion/Injection | - | - | - | ||
| Physical Characteristics | Hardness | ISO 48 | 15S | Shore A | 82 |
| Proportion | ISO 1183 | - | g/cm³ | 1.263 | |
| Melt Index | ISO 1133-1:2011 | 190℃/2.16kg | g/10min | 10.5 | |
| Brittle Temperature | ISO 812 | - | ℃ | ||
| Mechanical Properties | Elongation | ISO37:2017 | 200mm/min | % | 442 |
| Tensile Strength | ISO37:2017 | 200mm/min | Mpa | 24.9 | |
| Tearing Strength | ISO34-1:2015 | 500mm/min | KN/m | ||
| Hot Air Aging | Elongation Retention Rate | ISO37:2017 | - | % | |
| Tensile Strength Retention Rate | ISO37:2017 | - | % | ||
| Electrical Performance | Volume Resistivity | ASTM D257 | - | Ohm-cm | |
| Permittivity | ASTM D150 | - | - | ||
| Combustion Performance | Vertical Burning Test | UL 94 | 3.0/6.0mm | - | |
| Oxygen Index | ASTM D2863 | - | % | ||
| Feature | |||||
